Blow the chalk dust off your teaching materials and take the plunge into digitalisation with us. Modern displays are becoming more affordable and already offer a wide range of onboard applications without the need for additional third-party devices. We offer you the necessary accessories to integrate the display smartly into the learning environment - whether as a wall-mounted, mobile or free-standing solution with manual or electric drive - the display's suitability for everyday use is at least as important as the display itself.

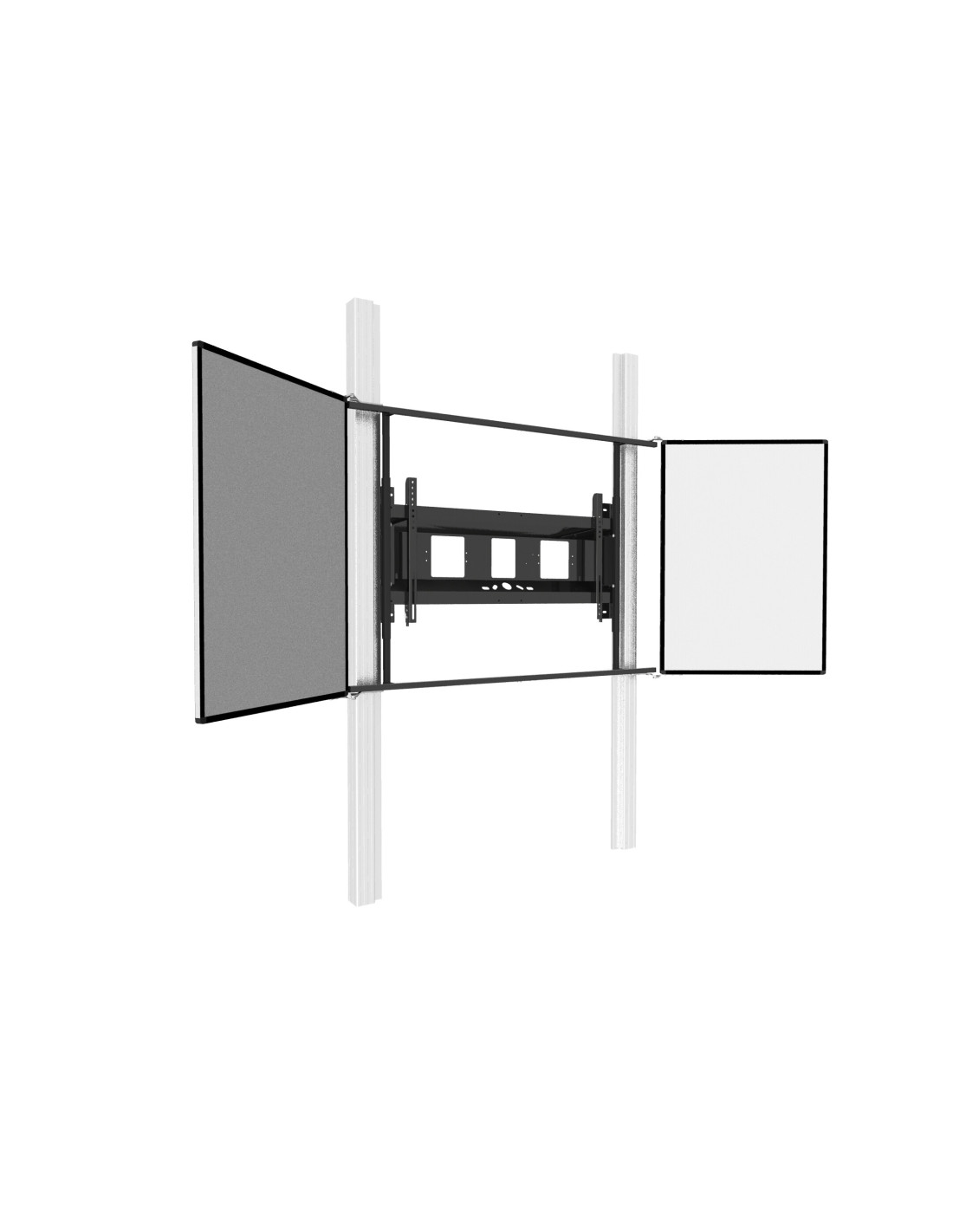

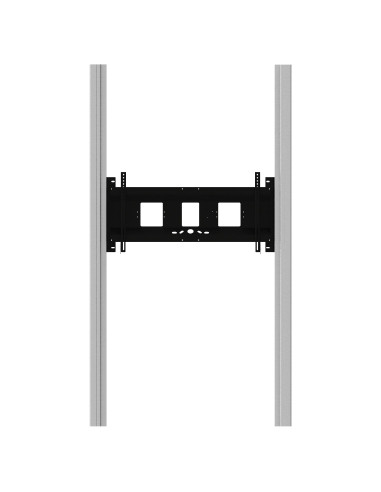

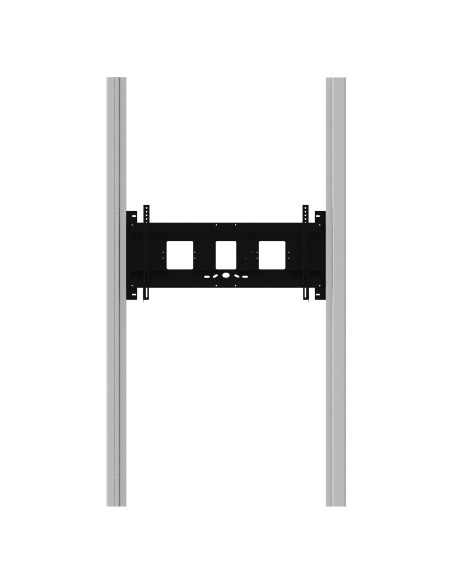

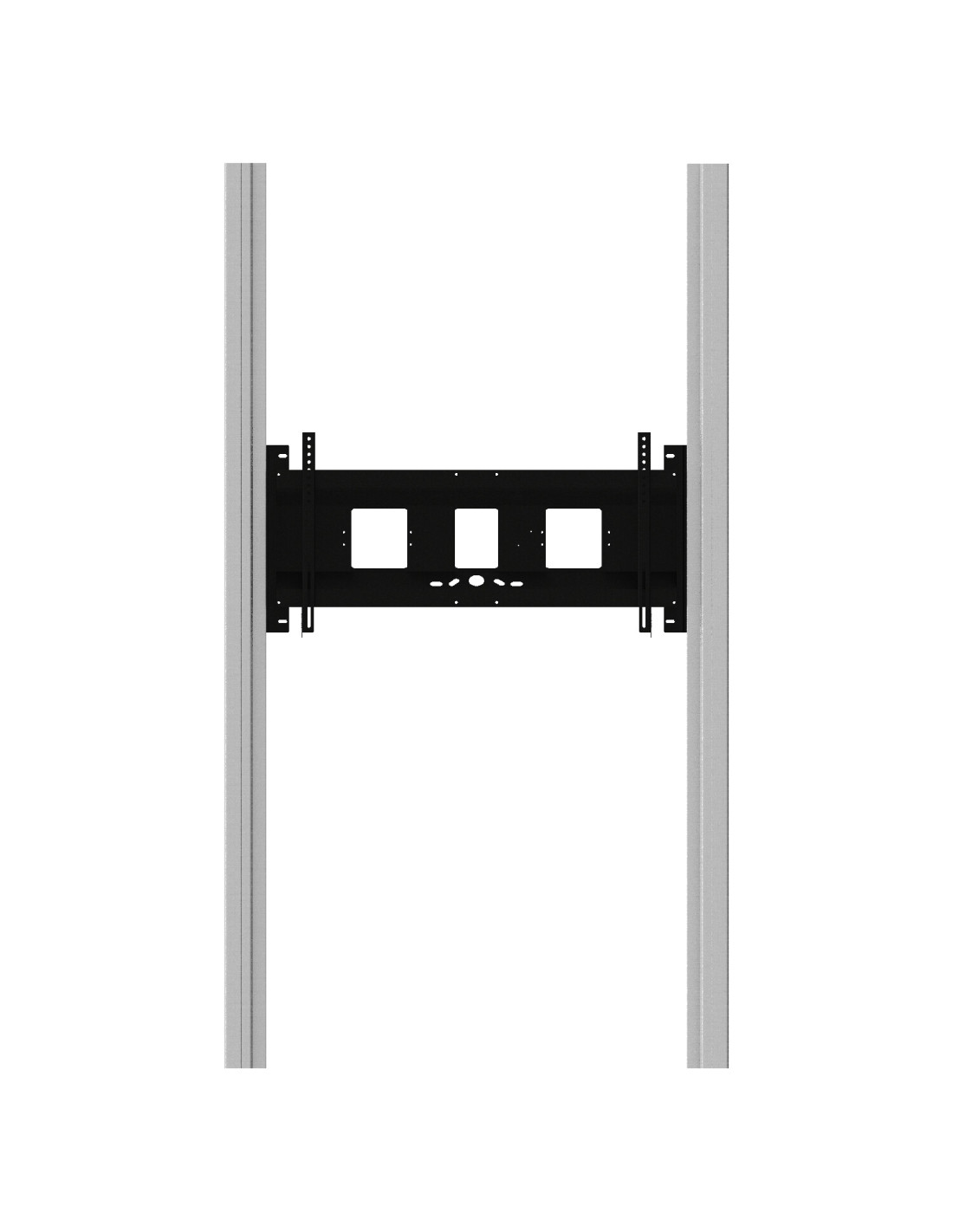

The celexon Expert manual 2-post pylon system Adjust-6586W for displays with wings can be combined with all touch displays available on the market from 65' to 86' screen diagonal.
Thanks to the integrated quick-release system, the display can be mounted quickly and securely in just a few simple steps.
The large display holder with max. VESA 1200 x 600 is made of 2 mm powder-coated steel. Socket strips, mini PCs incl. holder or cameras can be mounted on the frame and thanks to the cable management, no cables hang down on the system.
Manually height-adjustable pylon or board systems are independent of power sources and can be positioned anywhere in the room. Thanks to the manual drive, the height can be adjusted from any stand position. The system is also self-sufficient and maintenance-free. The height is adjusted using counterweights and a pulley system that has proven itself over the years - for smooth, reliable and safe travelling behaviour. The height of the entire display, including the bracket, can be adjusted manually along the aluminium pylons. This ensures that every user can work and present at the best ergonomic height for them. The display cannot move on its own, as the integrated process protection is secured by its own weight - steel springs are also integrated at both ends of the pylons to stop the display gently.

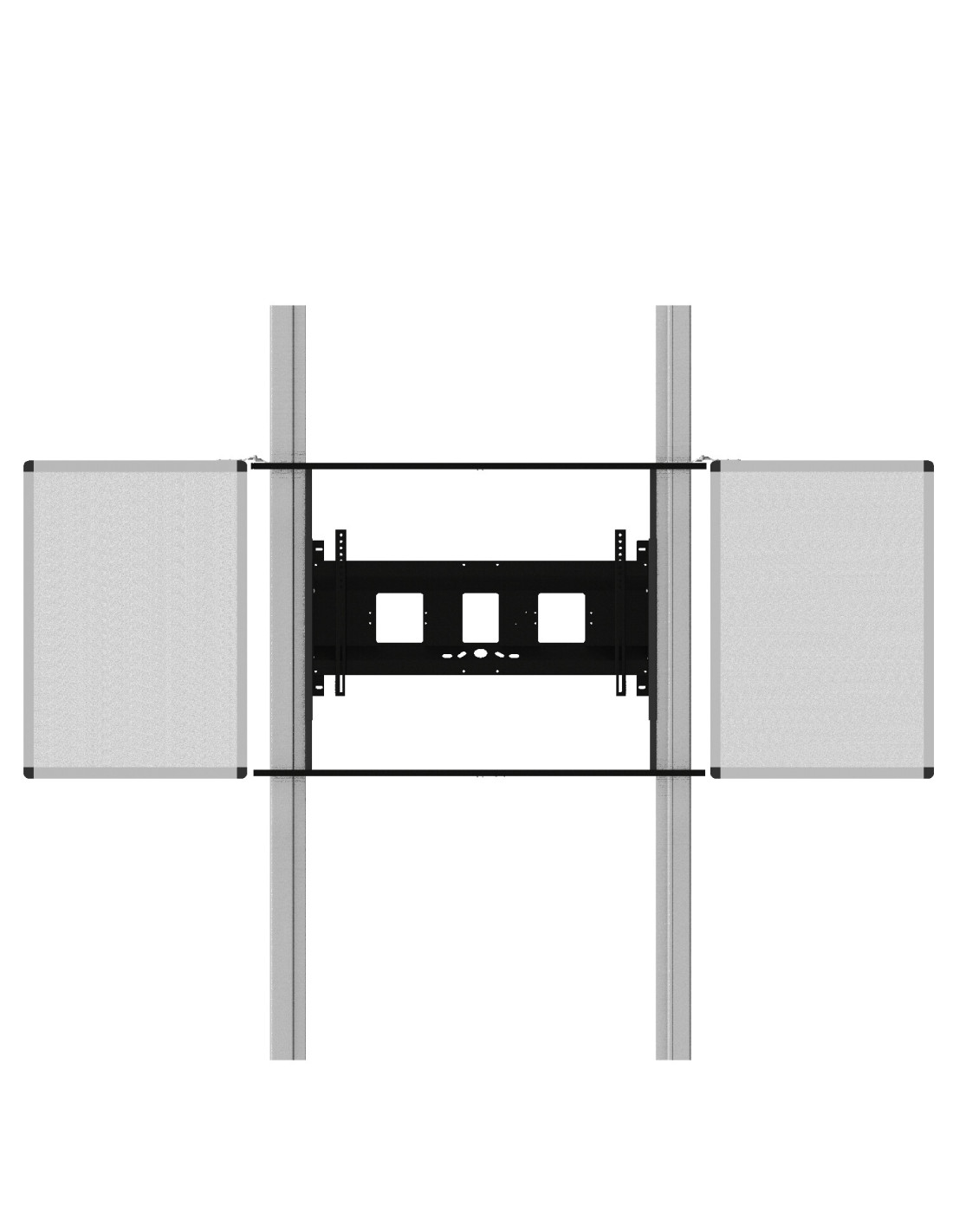

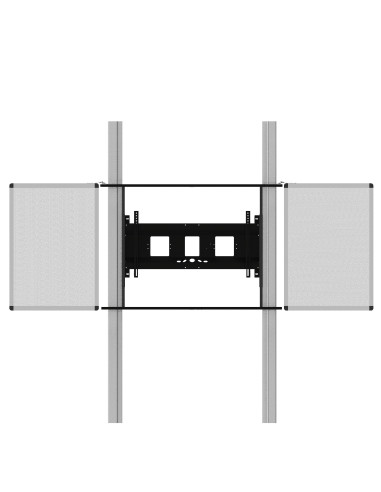

Extend your usable space by equipping the display with additional wings. To the right and left of the display there are two fixed side panels that are magnetic, writable and dry-wipeable. All wings are framed in aluminium profiles, waterproof bonded and black anodised. This allows handwritten notes, drawings or visualisations to be recorded on the panels alongside projected or digital content. Create a successful transition between modern technology and time-honoured teaching methods.
KEY INFORMATION:
- Manually height-adjustable system with 2 pylons for floor and wall mounting
- Manual height adjustment using counterweights and a pulley system
- Pylon height 260cm (290cm optionally available)
- System certification according to DIN EN 14434
- Suitable for (interactive) touchscreen displays / monitors up to 86'
- Extremely user-friendly display mounting thanks to suspension rails with quick-release system
- Display frame offers integrated cable management outlets
- Easy access to the display from the rear
- Min. 700mm height adjustment
- Supports the following Vesa standards:
Horizontal: 300-1200
Vertical: 200-600 - Natural anodised pylon column
- Display holder black, RAL9005 anodised
- Maximum stability even with large displays
- Incl. two folding whiteboard wings with black anodised aluminium profiles
- Wings magnetic, writable, dry-wipeable and waterproof
- Wings optionally available with green board coating and/or ruler!
- Incl. floor mounting material and wall brackets
- System is customised to the display model used - please specify the display model when ordering
