Blow the chalk dust off your teaching materials and take the plunge into digitalisation with us. Modern displays are becoming more affordable and already offer a wide range of onboard applications without the need for additional third-party devices.
We offer you the necessary accessories to integrate your display smartly into the learning environment - whether as a wall-mounted, mobile or free-standing solution with manual or electric drive - so you can use modern media technology effectively, conveniently and safely.

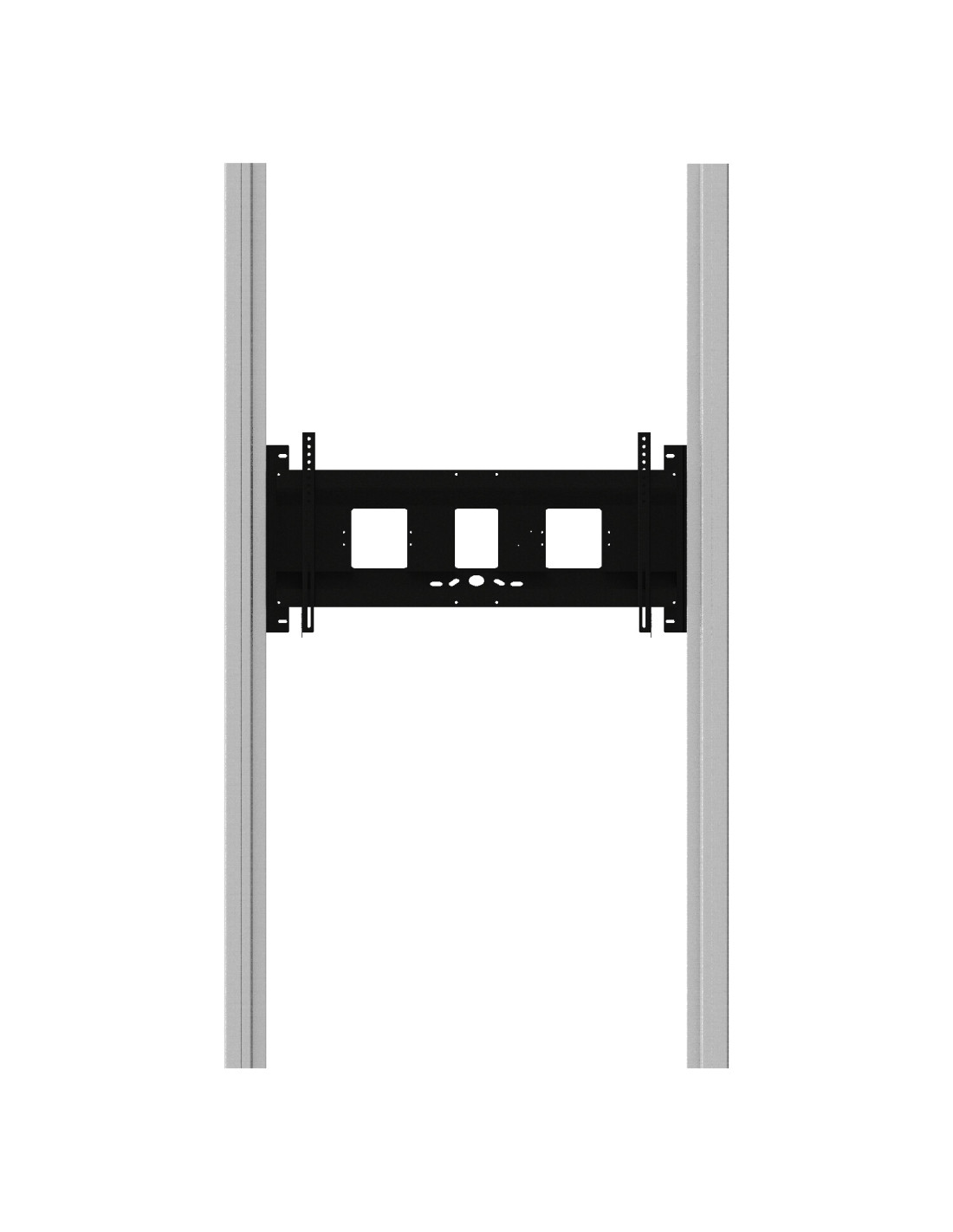

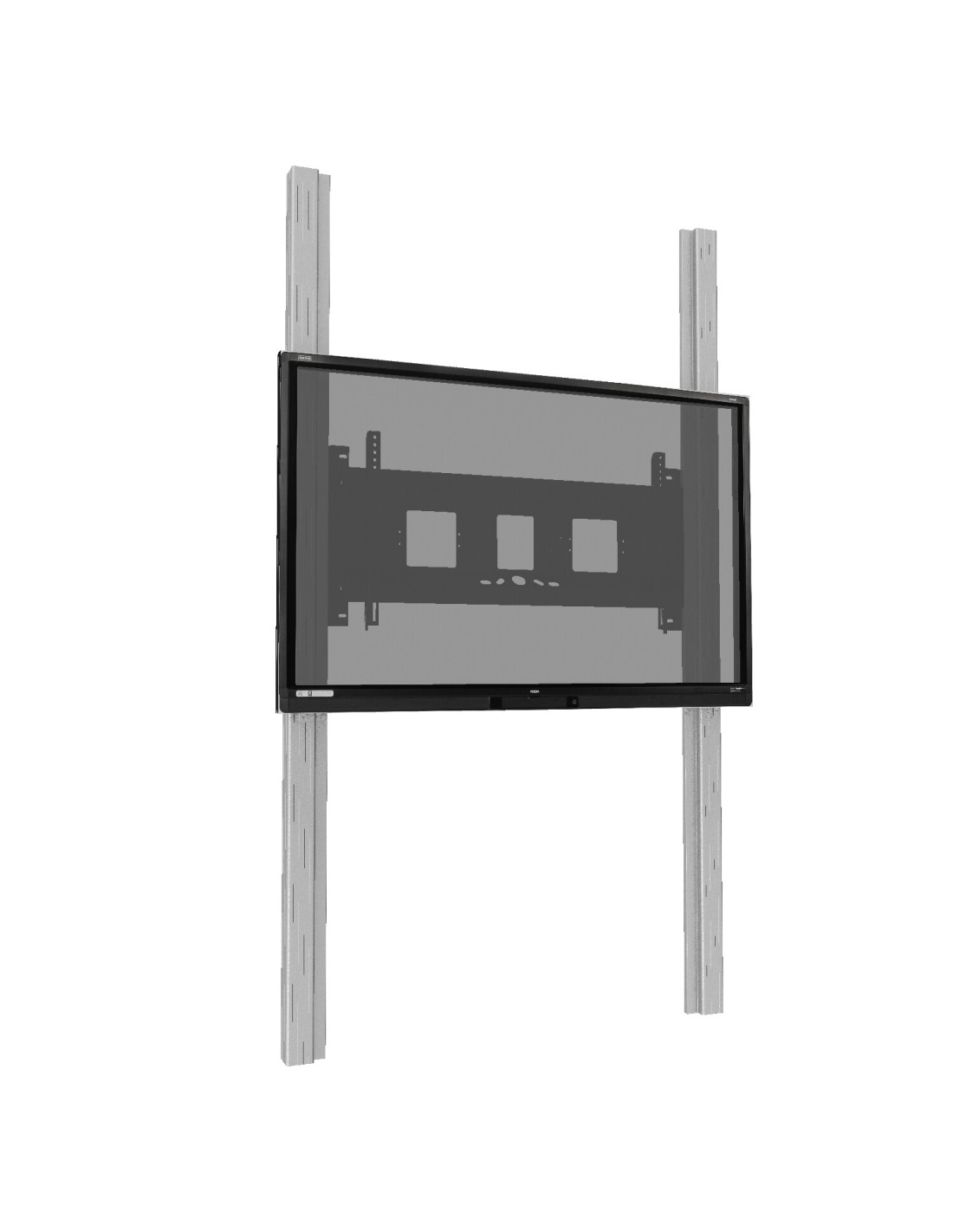

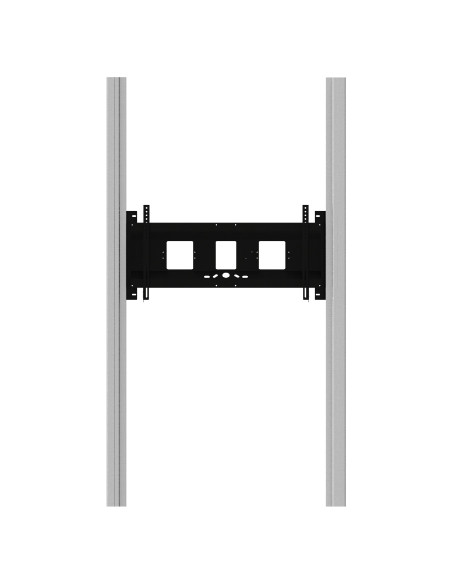

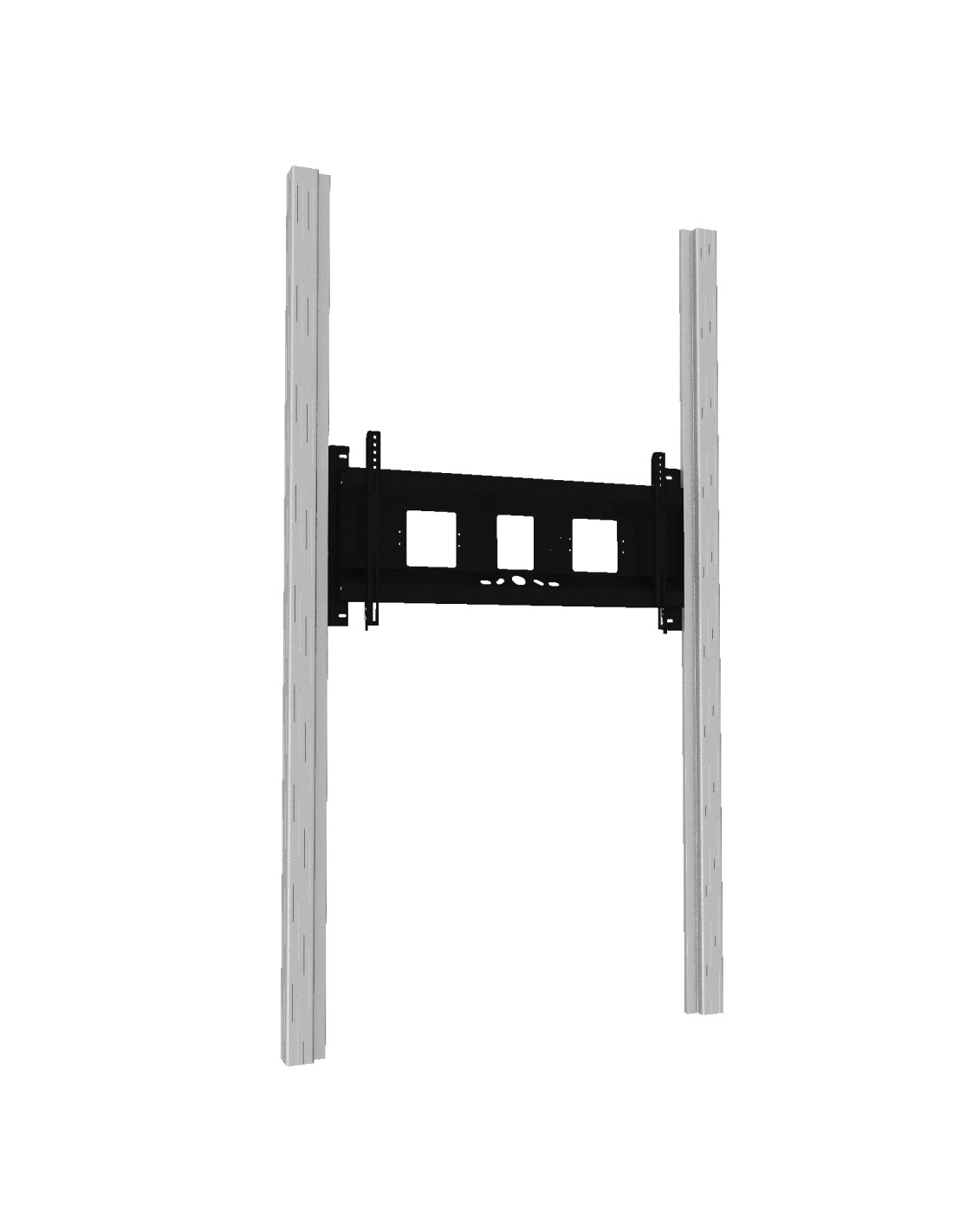

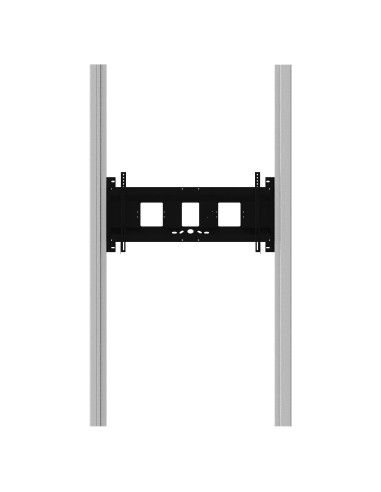

The celexon Expert manual 2-pillar pylon system Adjust-6586W for displays can be combined with all touch displays available on the market from 65' to 86' screen diagonal. It is 'GS-certified' by TÜV for safe use in educational institutions and conference rooms.
Thanks to the integrated quick-release system, the display can be mounted quickly and securely in just a few simple steps.
The large display holder with max. VESA 1200 x 600 is made of 2 mm powder-coated steel. Socket strips, mini PCs including brackets or cameras can be mounted on the frame and, thanks to the cable management, there are no more cables hanging from the system.
Manually height-adjustable pylon or board systems are independent of power sources and can be positioned anywhere in the room. The height can be adjusted easily and reliably thanks to the manual adjustment mechanism. The height is adjusted using counterweights and a pulley system that has proven itself over the years - for smooth, reliable and safe travelling behaviour.
With this height adjustment, your display can be adjusted in height along the aluminium pylons. This ensures that every user can work and present at the best ergonomic height for them. Unintentional adjustment of the display is reliably prevented, as the mechanism prevents this by means of counterweights individually adapted to your display - in addition, steel springs are integrated at both ends of the pylons, which ensure that the display always stops gently, thus protecting your equipment and the user.
KEY INFORMATION:
- Manually height-adjustable system with 2 pylons for floor and wall mounting using customised counterweights
- Height centre of display with 2600mm pylons: approx. 1150 - 1750mm
- Min. 600mm adjustment range
- System certification according to DIN EN 14434
- GS certified
- For displays / monitors up to 86' and max. 100kg payload
- Suspension rails with quick-release locking system
- Mounting frame with cable management openings
- Display connections accessible at all times
- Pylon height 260cm (optional 290cm height available)
- Supports the following Vesa standards: Horizontal: 300-1200 Vertical: 200-600
- Natural anodised pylon columns
- Display mount black, RAL9005 anodised
- Maximum stability & operating safety even with large displays
- Incl. floor mounting material and wall brackets
- System is customised to the display model used - please specify the display model used when ordering
